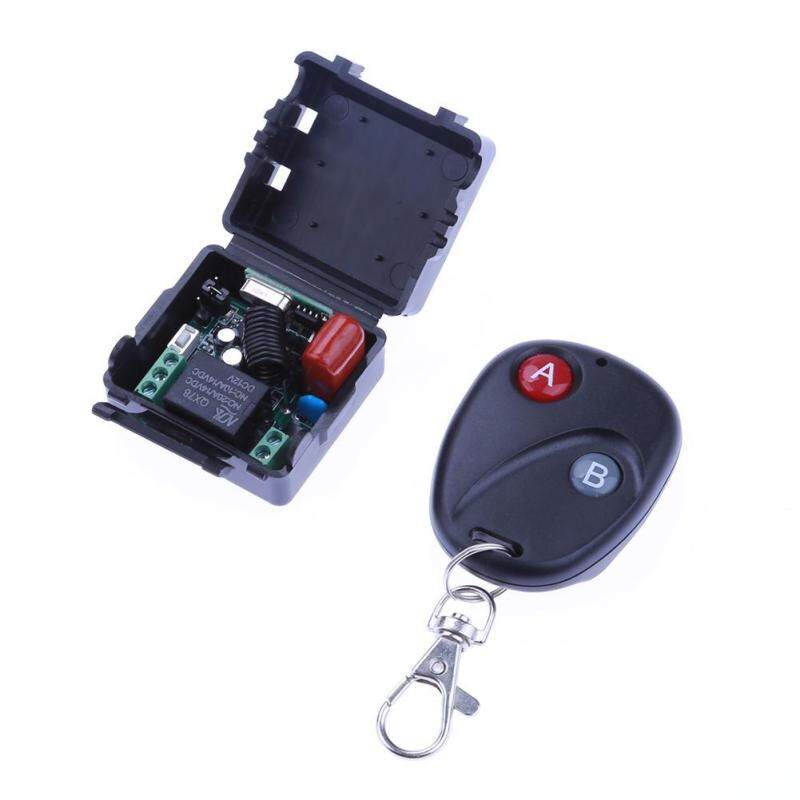

Product details of Wireless Remote Control AC180-240V 1 Channel One Way Relay Module Switch


1. This controller is controlled by intelligent microprocessor, which can be used in the control of garage door, lighting control, motor control, door control system, etc. 2. It has the features of simple installation and safety and reliability.

Specifications: Operating voltage: AC 180-240V Operating temperature: -40~80 degrees Operating frequency: 315/433MHZ(default 315MHZ) Maximum load: 1500W Receive sensitivity: ≥-95dB Remote control distance: 20-40m Product size: Switch size: approx. 40 x 40 x 28mm/1.57 x 1.57 x 1.10in Remote Control size: approx. 50 x 40 x 12mm/1.97 x 1.57 x 0.47in Control panel weight: approx. 25g Remote control weight: approx. 22g Material: ABS Working Mode: Self locking, point action and interlocking Operation Manual: Press the learn button for three seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 5 times to show the success of the study. Note: The controller can learn the fixed code / learning code, total 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control. Removal method: Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.

Connection Way:

1, 220 volts ac output: learning single remote control switch input, 220 v ac power after 220, the output received L very public end, electrical appliances on the output side often start and N end, a simple control circuit is designed.  2. Direct current output: the learning type 220 volt single-channel remote control switch input terminal, and then a 220 volt ac power supply. The positive terminal of the dc power supply on the output end, and the negative pole of the cathode is connected to the cathode. The dc power supply can range from 0V ~ 24V.

Specifications of Wireless Remote Control AC180-240V 1 Channel One Way Relay Module Switch

What's in the box:
  • 1 x AC180-240V One Channel Switch
  • 1 x Double Key Remote Control
