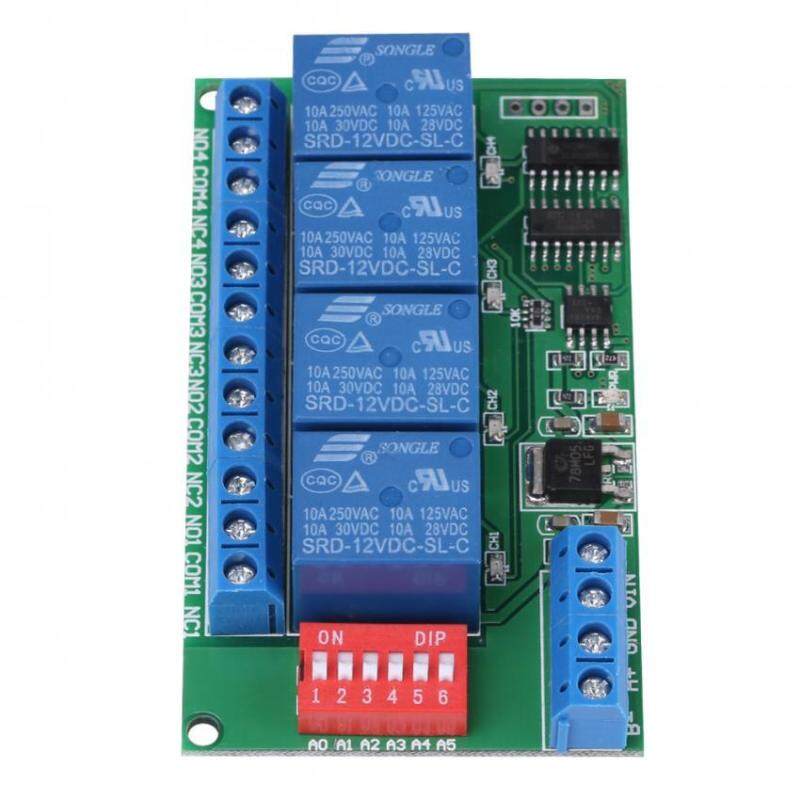

DC 12V 4-Channel RS485 Delay Timer Switch Relay AT Command Remote Control Accessries

DC 12V 4-Channel RS485 Delay Timer Switch Relay AT Command Remote Control Accessries

Status: In stock
RM 29.20
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • DC 12V power supply (voltage range 9-13V )
  • Standby current (all relays closed) 11-13MA, 1 relay open 44MA, 2 relays open 77MA, 3 relays open 110MA,4 relays open 140MA
  • AT commands can be made serial Hyper Terminal (serial assistant) Enter
  • Two instruction-control mode

Features:

  • DC 12V power supply (voltage range 9-13V ).
  • Standby current (all relays closed) 11-13MA, 1 relay open 44MA, 2 relays open 77MA, 3 relays open 110MA,4 relays open 140MA.
  • "Open" "close" "Momentary" "Self-locking" "Interlock" "Delay" 6 Commands.
  • Two instruction-control mode
  • Under the AT command ,the maximum delay is 9999 seconds.
  • AT commands can be made serial Hyper Terminal (serial assistant) Enter;
  • Under the command mode, it can support up to 32 devices in parallel.

Specifications:

Size: as the picture

Weight: 59g

Maximum load:10A / 12VDC

Glossary:

NO        : Relay normally open contact

COM      : Relay common contact

NC        : Relay normally closed contact

Open      : NO connection COM, NC disconnect COM

Close      : NO disconnect COM, NC connection COM

Momentary : Enter the Momentary command, the receiver Relay is Open, delay of 0.5 seconds after, Relay is Close;

Toggle : Enter the Toggle command, the receiver Relay is Open, Enter the Toggle command again, Relay is Close;

Latched : Enter the Channel 1 Latched command, the receiver Channel 1 is Open, the Channel 2 is Close.

Enter the Channel 2 Latched command the receiver Channel 2 is Open, the Channel 1 is Close.

Enter the Channel 3 Latched command the receiver Channel 1 is Close, the Channel 2 is Close.

Delay : Enter the Delay command, the receiver Relay is Open, delay of 0-9999 seconds ,after, Relay is Close;

During the delay, Eter the Close command, immediately close the relay

Command mode selection :( figure above) A5 to the ON side is command mode. End to the OFF (non ON side) is AT command mode.

Slave ID: A0-A4 is the slave ID, you can choose 32 different slave ID.

Under the command mode,the slave ID must be correct

Typical applications:

1AT command mode (A5 = OFF), in this mode can be through the serial Hyper Terminal (serial assistant) enter a simple AT command control relay. AT command mode time up to 9999 seconds

2  command mode (A5 = ON), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Poll software control (software automatically add the CRC), PLC or MCU process control

Wiring Diagram:

1 DC 12V control circuit,Wiring diagram below. "LOAD" may be camera,LED lights, fans, motors and other DC 12V equipment

Package Included:

1 x Delay Timer Switch Relay

Specifications of DC 12V 4-Channel RS485 Delay Timer Switch Relay AT Command Remote Control Accessries

  • Brand
    OEM
  • SKU
    OE702HLAC3ZKN0ANMY-166018334
  • Warranty Type
    No Warranty
  • Model
    qian-my
What’s in the box
1 x Delay Timer Switch Relay
