DC 24V 10A Remote Control Motor Switch Controller Tool For DC Linear Actuator

DC 24V 10A Remote Control Motor Switch Controller Tool For DC Linear Actuator

Status: In stock
RM 50.00
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Wide range of use, can be applied to motor motor reversing, DC lamps, access control, industrial control and security industry and other fields.
  • Features with high confidentiality, stable performance and low power consumption
  • No need to use the traditional jumper or DIP switch code, just the remote control with the receiver controller code can be used to achieve matching.

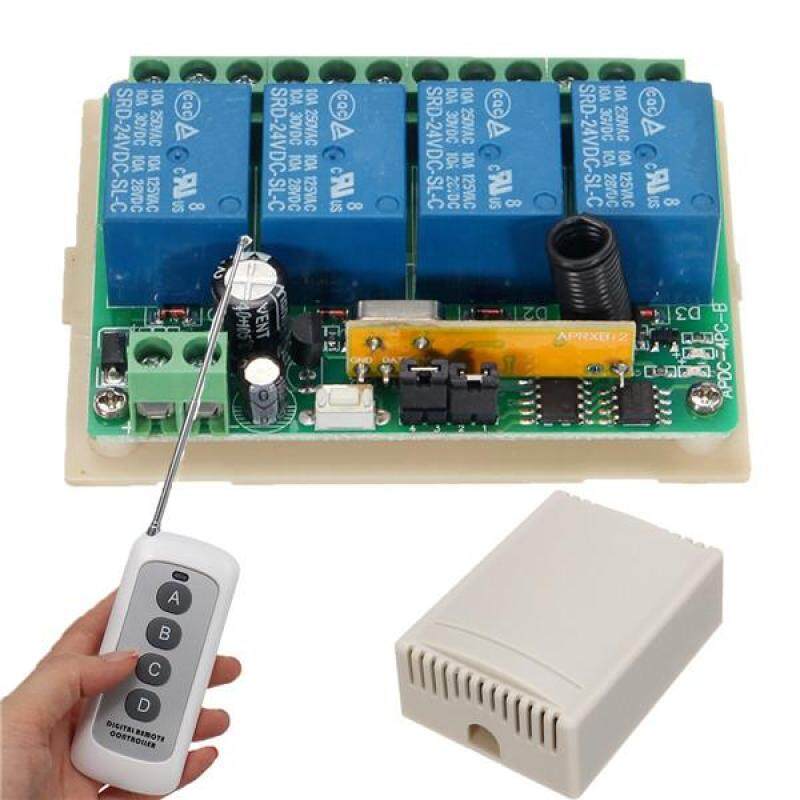

Name:DC24V 10A Digital Remote Control Motor Switch Controller For Linear Actuator Model: 593727 Product Description Material: Plastic case Color: white Operating voltage: 24V Contact capacity: ≤ 10A Static operating current: ≤ 6mA Working temperature: -20 ~ +60 degrees Receiving sensitivity: -114dBm Operating frequency: 315MHz Size Remote control: 100x40x20mm Controller: 75x55x25mm Features: * Wide range of use, can be applied to motor motor reversing, DC lamps, access control, industrial control and security industry and other fields. * Features with high confidentiality, stable performance and low power consumption

* No need to use the traditional jumper or DIP switch code, just the remote control with the receiver controller code can be used to achieve

matching.

Application: Used in the field of motor motor reversing, DC lamp, access control, industrial control and security industry. How to use? (Instructions) Output: There are four output methods, signal interlock, signal non-lock, signal self-locking, signal lock and self-locking coexist. (A normally open B public C normally closed) 1.Signal interlock: 12 connection, 34 not connected Press the A key, the A relay is disconnected, and the relay corresponding to the B key is sucked and held, and the C key and the D key are operated as follows. 2.The signal is not locked: 12 and 34 are not connected Press the remote control A key, and the A key corresponding to the relay pull, release the relay after the break, press the B key, and B key corresponding to the relay pull, release and disconnect .C key and D key this Cycle work. 3. The signal from the lock: 12 connected, 34 connected Press the remote control A key, and the A key corresponding to the relay to pull and hold, and then press the A key, A relay off. Press the remote control B key, B key corresponding to the relay suction and hold, then press the B key, B relay disconnect, C key and D key to work as this cycle. 4. The signal from the lock and non-coexistence: 12 not connected, 34 connected And the remote control corresponding to the four relays, two self-locking, two non-lock Study method: 1.Press the receiver on the learning button light and then let go light to go into the learning state, click on the remote control of any key to learn, the receiver receives the signal after the light flashes continuously after the study is successful. 2.Clear code: long press the code button for about 8 seconds to the code lights off the clear code is successful, clear the original learning by the remote control will not be able to use, you must re-code before the remote control. Package include: 1 x Controller 1 x Remote control

Warning: Do not connect the wiring when wiring, so as to avoid short circuit damage to the motherboard, the control of communication for safety should also be off after the good line to confirm the correct and then use power.

Spesifikasi oleh DC 24V 10A Remote Control Motor Switch Controller Tool For DC Linear Actuator

  • Jenama
    Not Specified
  • SKU
    NO037HLACXM4GCANMY-238047793
  • Jenis jaminan
    Tiada Waranti
  • Model
    Fivestarstore-SKU593727
Apa di dalam kotak
1 x Controller 1 x Remote control
