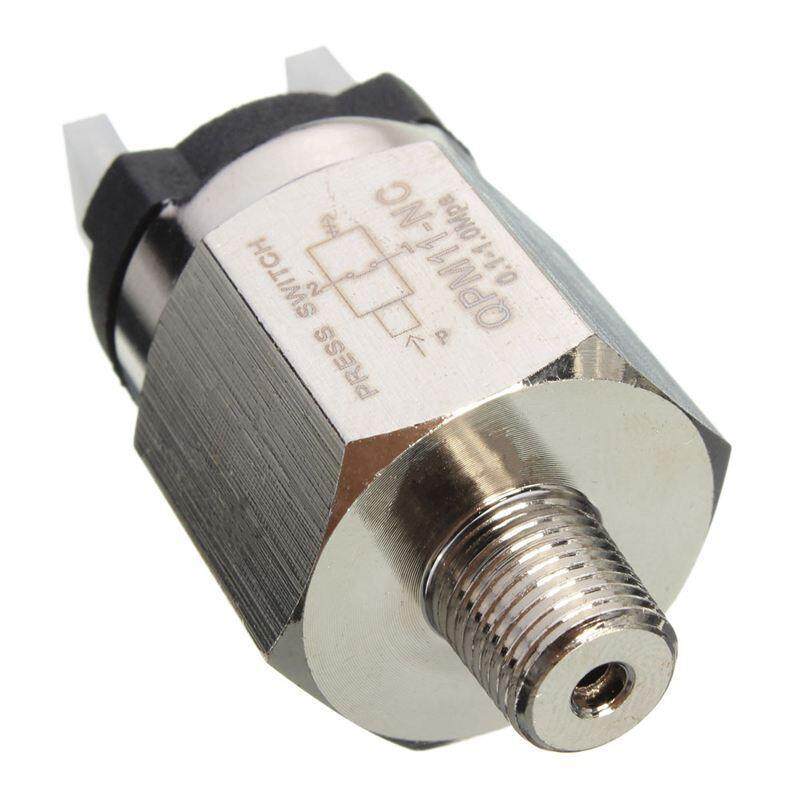

Reliable 1/8 inch Port Adjustable Diaphragm Type Pressure Switch Nozzle QPM11-NC

Reliable 1/8 inch Port Adjustable Diaphragm Type Pressure Switch Nozzle QPM11-NC

Status: In stock
RM 24.20
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • QPM11-NC (Often shut down): that is, the pressure is not set,
  • the switch contacts are closed; to set the value, the switch
  • contacts are disconnected, the line is the state of power.
  • Model: QPM11-NC
  • Use medium: air
  • color: black
  • Material: Plastic+Stainless Steel
  • Use pressure range: 0.1-1.0Mpa
  • Environment and medium temperature: -5 -60 Celsius
  • Work form: pressure adjustable typeInstall
  • connection mode: external thread
  • Nozzle diameter: 1/8 inch
  • Working voltage: 220V/AC, 48V/AC.DC
  • Maximum working current: 500mA
  • Maximum power: 24VA, 100VA
  • Insulation voltage: 500V, 1500V
  • Maximum pulse number: 200T/min
  • Service life: 100 millions cycles
  • Note:
  • Adjust the pressure of the size, please screw the two
  • terminals in the middle of the Hex.
  • Package include:
  • 1X pressure switch
  • Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
QPM11-NC (Often shut down): that is, the pressure is not set,the switch contacts are closed; to set the value, the switchcontacts are disconnected, the line is the state of power.Model: QPM11-NCUse medium: aircolor: black Material: Plastic+Stainless SteelUse pressure range: 0.1-1.0MpaEnvironment and medium temperature: -5 -60 Celsius Work form: pressure adjustable typeInstallconnection mode: external threadNozzle diameter: 1/8 inchWorking voltage: 220V/AC, 48V/AC.DCMaximum working current: 500mAMaximum power: 24VA, 100VAInsulation voltage: 500V, 1500VMaximum pulse number: 200T/minService life: 100 millions cyclesNote: Adjust the pressure of the size, please screw the twoterminals in the middle of the Hex.Package include: 1X pressure switchNote: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Specifications of Reliable 1/8 inch Port Adjustable Diaphragm Type Pressure Switch Nozzle QPM11-NC

  • Brand
    OEM
  • SKU
    342631436_MY-479141613
  • Warranty Type
    No Warranty
  • Model
    I135253A1
What’s in the box
1 X Reliable 1/8 inch Port Adjustable Diaphragm Type Pressure Switch Nozzle QPM11-NC
