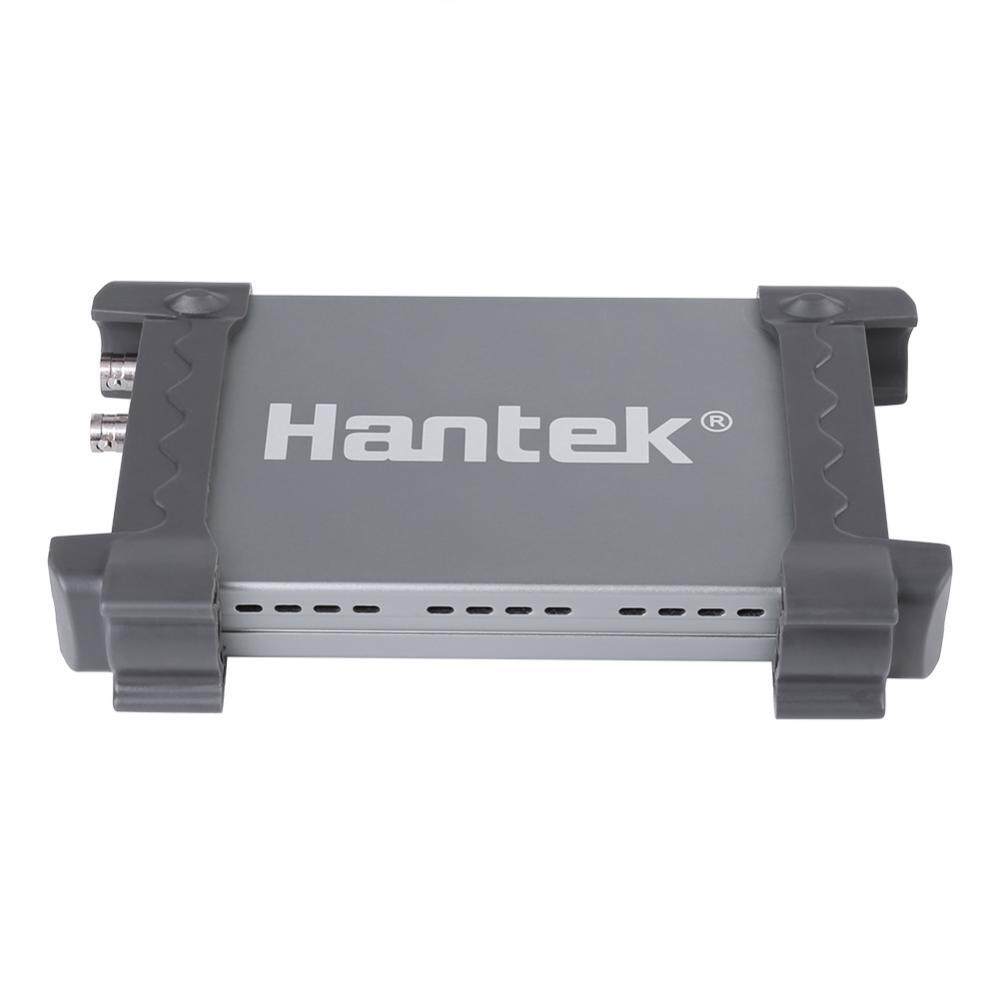

SHANYU 6022BL PC USB Oscilloscope 20MHz Bandwidth 16 Channels Logic Analyzer

SHANYU 6022BL PC USB Oscilloscope 20MHz Bandwidth 16 Channels Logic Analyzer

Status: In stock
RM 280.90
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Excellent industrial design, which is not only beautiful generous, but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wear ability
  • 16 channels logic analyzer, 2 channels oscilloscope
  • High performance, 48MSa/s real-time sampling,1M/CH memory depth
  • Standard USB XITM interface, easily inserts into USB XITM housing to make up a combination instrument

Features:

  • Excellent industrial design, which is not only beautiful generous, but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wear ability.
  • 16 channels logic analyzer, 2 channels oscilloscope.
  • High performance, 48MSa/s real-time sampling,1M/CH memory depth.
  • Standard USB XITM interface, easily inserts into USB XITM housing to make up a combination instrument.
  • USB2.0 interface, no external power source required, easy to use
  • Be suitable for notebook computer, product line maintenance, be used easily on business.
  • Small size,easy to carry
  • Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
  • More than 20 kinds measurement functions,  Brightness Adjustment,invert, addition, subtraction, multiplication, division, X-Y plot.
  • Waveform data can be output to Excel, JPG/BMP according to time and voltage.
  • FFT frequency spectrum analysis.
  • One computer can connect many oscilloscope, extend channel easily.
  • Provide secondary development .

https://my-live.slatic.net/original/8e6e75f80065c5f417f5e303a493b129.jpg

https://my-live.slatic.net/original/43b24e85858ecaf030dc58aee07f3e71.jpg

https://my-live.slatic.net/original/3325b627a844766960aa2cd494fc56c6.jpg

https://my-live.slatic.net/original/3bffb3308734c4fc30565db17082c8ac.jpg

Specifications:

Model 6022BL
Oscilloscope Features
Bandwidth 20MHz
Channel 2(Digital)+16(Logic)
Sample Rate 48MSa/s
Memory Depth 1M
Rise Time 17.5ns
Time Base Precision ±50ppm
Time Base Range 4ns/div-1h/div (Step by1-2-4)
Input Impedance 1MΩ 25pF
Input Sensitivity 20mV/div-5V/div
Vertical Resolution 8Bit
Vertical Position Range 20mV ~ 5V/div x1 probe; 200mV ~ 50V/div x10 probe; 2V ~ 500V/div x100 probe; 20V ~ 5KV/div x1000 probe
DC Accuracy 3%
Bandwidth Limited 20MHz
Trigger Type Edge, Alternative
Trigger Source CH1, CH2
Math +,-,x,/,FFT, Invert
Cursor Measurement Cross, Trace, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Logic Analyzer Features
Channel 16
Max. Impedance 1MΩ(C=7.5pF)
Max. Voltage 0V~5.5V
Max. Sample 48M
Bandwidth 10MHz
Compatible Input TTL, LVTTL, CMOS
Memory Depth 1M/CH
General Features
Power USB Port
Dimensions 205mm x120mm x 40mm
Standard Probe support 2 pcs  probes

Package Included:

1 * 6022BL oscilloscope 2 * Oscilloscope probe 1 * USB cable 1 * jumper clip set 2 * jumper cable

1 * CD 8 x color circle 2 x probe caps



Specifications of SHANYU 6022BL PC USB Oscilloscope 20MHz Bandwidth 16 Channels Logic Analyzer

  • Brand
    China OEM
  • SKU
    325186305_MY-450364743
  • Warranty Type
    No Warranty
  • Model
    shan-my
What’s in the box
1 * 6022BL oscilloscope 2 * Oscilloscope probe 1 * USB cable 1 * jumper clip set 2 * jumper cable 1 * CD 8 x color circle 2 x probe caps
